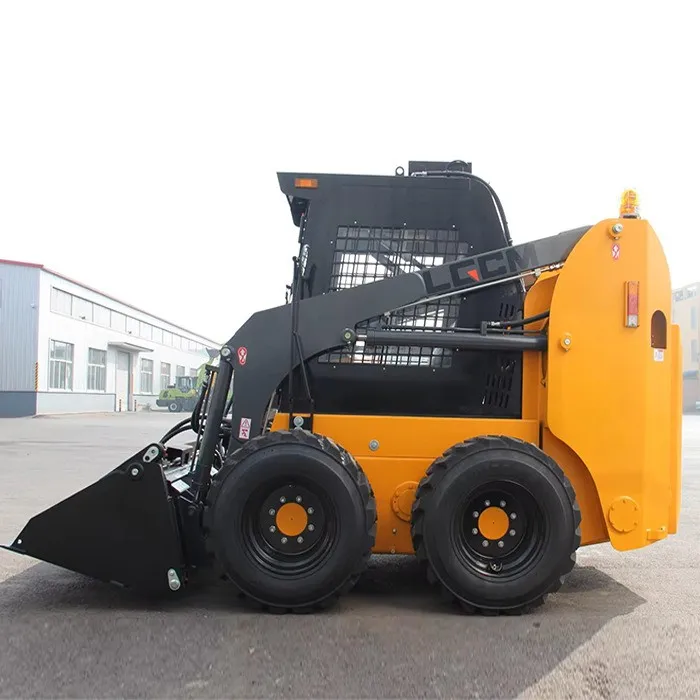

The LG100CB is a skid steer loader designed for material handling, site cleaning, loading work and other tasks in narrow working spaces. With an operating load of 1100 kg, a 0.55 m³ bucket and a compact body width of 1880 mm, it is suitable for customers who need strong working performance with good maneuverability.

Powered by a 74 kW engine and equipped with hydraulic pilot control, the LG100CB combines practical lifting capacity, compact dimensions and attachment flexibility in one machine. It is suitable for construction sites, farms, industrial yards, urban projects and other working environments where space is limited but daily productivity still matters.





Strong power for demanding work

With 74 kW rated power, the LG100CB is suitable for heavy daily tasks such as loading gravel, site clearing, pallet handling and material transport.

1100 kg operating load

The machine offers a practical operating load of 1100 kg, helping users handle heavier materials with fewer repeated trips.

Compact size for restricted work areas

With a compact length and width, the LG100CB is suitable for narrow passages, warehouse corners, farm buildings and other limited working spaces where larger machines are less practical.

Hydraulic pilot control for smoother operation

Hydraulic pilot control helps improve handling precision and makes bucket movement smoother during loading, dumping and material placement.

Practical bucket capacity and dumping height

The 0.55 m³ bucket and 2500 mm dumping height make the machine suitable for common loading and unloading work, including truck loading and material transfer.

Wide attachment compatibility

The LG100CB can be equipped with a wide range of attachments, helping users handle different applications with one machine.





The LG100CB is suitable for:

 construction site loading

 debris and waste handling

 yard and warehouse cleaning

 pallet and material transport

 farm and livestock facility work

 municipal and urban maintenance

 dock and industrial yard applications

For customers looking for a compact skid steer loader for different job sites and multiple working tasks, the LG100CB is a practical option.



Models		LG100CB
Performance Parameter	Operating load (kg)	1100
	Max Speed (km/h)	9\18
	Rated flux (L/ min)	75
	High Flow Flux (L/min)	140
	Tire (track) model	12-16.5
	Rated power (Kw)	74
	Fuel tank capacity (L)	90
	Self weight bucket (kg)	3550
	Bucket capacity (m³)	0.55
Dimension Parameter	Overall operating height (mm)	4070
	Height to bucket hinge pin (mm)	3280
	Hheight to top of cab (mm)	2160
	Height to bottom of level bucket (mm)	3140
	Without bucket length (mm)	2880
	Overall length with bucket (mm)	3580
	Dumping angle at maximum height (°)	40
	Dumping height (mm)	2500
	Dumping reach (mm)	700
	Rollback o bucket on ground (°)	30
	Rollback of bucket at full height (°)	104
	Wheelbase (mm)	1115
	Ground clearance (mm)	205
	Angle of departure (°)	20
	Front turning radius without bucket (mm)	1278
	Front tuning radius (mm)	2144
	Rear tuning radius (mm)	1857
	Rear axle to bumper (mm)	1082
	Tread width (mm)	1500
	Width (mm)	1880
	Bucket width (mm)	1880



The LG100CB is designed for customers who need a compact loader with practical working capacity and flexible application range. Its size helps improve maneuverability in limited spaces, while its operating load and hydraulic system support regular heavy-duty tasks.

The machine can also be supplied with different attachment solutions according to actual working requirements. For customers who work in more demanding ground conditions, a tracked version can also be discussed.





To support different applications, the LG100CB can be equipped with various attachments, such as:

Bucket for bulk material loading

Auger for drilling work

Sweeper for cleaning operations

Grapple for handling branches, pipes and irregular materials

Other tools according to working needs

Different attachment options can be discussed based on actual job requirements.



We focus on the manufacturing and export of construction and material handling equipment, including skid steer loaders, wheel loaders, forklifts, excavators and related machinery. For customers entering this page through search, machine specifications are important, but supplier support also matters. We help buyers with model selection, configuration confirmation, shipment communication and after-sales support according to actual working needs.





In addition to machine supply, we can provide spare parts support, maintenance guidance, optional attachment communication and after-sales assistance. This helps customers complete purchasing decisions more clearly and use the machine with greater confidence after delivery.





What is the operating load of the LG100CB?

The operating load is 1100 kg.

What is the bucket capacity?

The standard bucket capacity is 0.55 m³.

Is the LG100CB suitable for narrow working spaces?

Yes. Its compact body design makes it suitable for restricted work areas such as warehouses, farms and urban job sites.

Can different attachments be provided?

Yes. The machine can be equipped with different attachments according to job requirements.

Is a tracked version available?

Yes. A tracked version can also be discussed for more demanding working conditions.





When choosing a skid steer loader, buyers usually compare more than just engine power and bucket size. They also care about operating load, machine dimensions, dumping height, attachment compatibility and supplier support. If you are looking for a compact skid steer loader for loading, cleaning and material handling work, the LG100CB is a model worth considering.
